Description

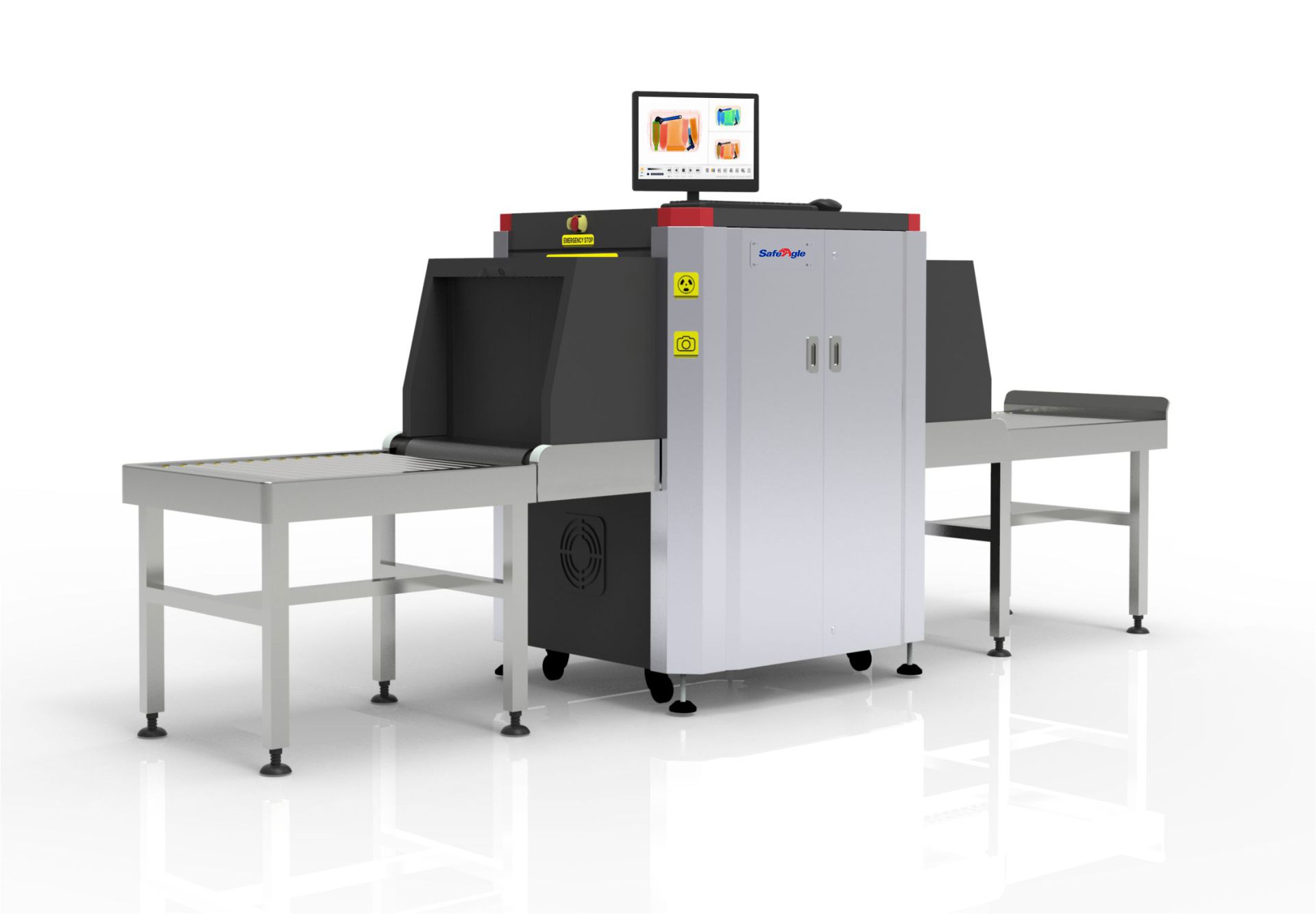

Safeagle HP-SE6040C is New Generation Series x ray baggage inspection system which offers high performance threat detection. With tunnel opening size of 630mm x 425mm, can accommodate a range of parcel and baggage size for hotel, events, police office, court, airport and more. TheSE6040dual-energy detection provides material discrimination alert so that screeners can identify the material composition of the scanned object.
General Specification
Tunnel Size ………………… 630*425mm
X-ray Sensor ……………… Multi-energy
Max. Load ………………… 165 kg(Evenly distributed)
Conveyor speed ………… 0.23m/s
Conveyor height ……… 710mm
Image Resolution ……… 21.5”LCD 1920*1080
System Noise …………… <58 dB
Film safety ………………… Guarantee ISO 1600 Film
System Voltage ………… 220 VAC (±10%) 50±3HZ
Power Consumption … 0.8kw (Max)
Image zoom …………….. zoom 1, 2 – 3 – 64x
Superior Features
- Unique & Humanization Design
It designed with double symmetrical swing door for easy maintenance and operator safety protection. - Explosive & Narcotics Detection
Assist operators in the detection of a range of explosives and narcotics respectively in real time during scanning process by marking potential threat on X-ray image. - Highest Precise Images Output
With over 13 image processing tools and detection alert algorithm functions, the feature rich software allows the operator to more easily and accurately search for contraband. - Different Access Modes
The system provides administrators with hierarchical permissions. - Advanced 7 Color Imaging (Optional)
Enables operators to view screened objects in 7 colors, which helps to identify the potential objects effectively.
-

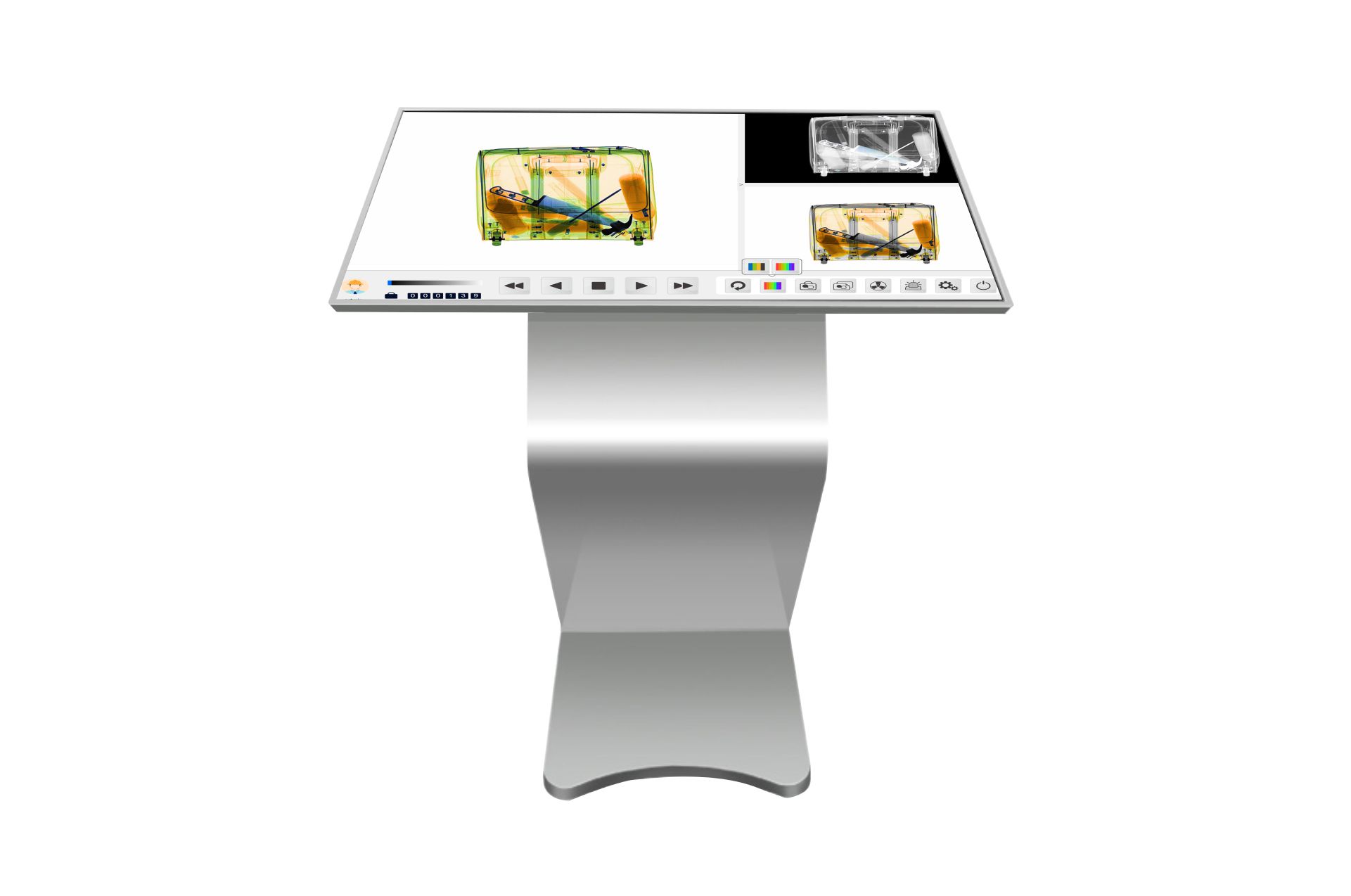

Touch screen dedicated console (optional)
Compliance
- CE compliance
Directive 2004/108/EC Electromagnetic
Directive 2006/42/EC Machinery
Directive 2006/95/EC Low Voltage - ISO9001 Quality Management System
- ISO14001 Environment Management System
- OHSAS18001 Occupational Health Management System
Applications
Hotel, Shopping mall, Office building, Residential, Embassies, Museum, Factory, Events, Airport etc.
